LETMIL MT6060 - special equipment for applying stone slabs. This unique device quickly and with high quality makes deep inscriptions on granite and marble slabs of any thickness. Engineers have developed this amazing machine specifically for stone workshops. The uniqueness of this equipment lies in a special design, a special built -in scanner and software, thanks to which it is possible to create inscriptions on a stone using any font.
LETMIL MT6060: application area
The main field of application of the MT6060 machine is the application of text on tombstones and slabs. The working tool is several types of mills: polycrystalline, sintered, carbide. You can set any height (depth) of the text from 0.1 to 20 mm.

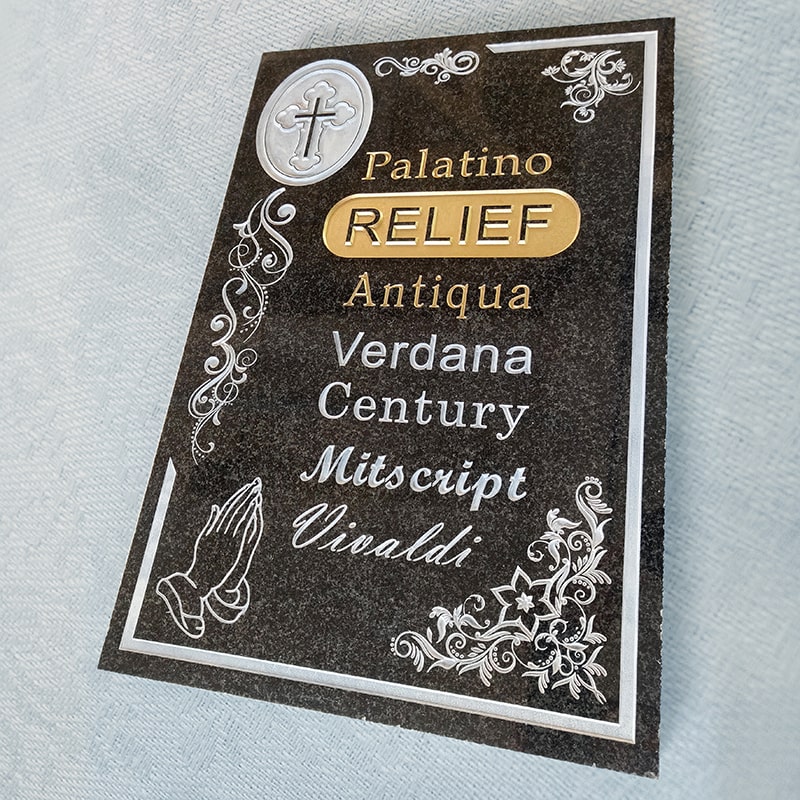

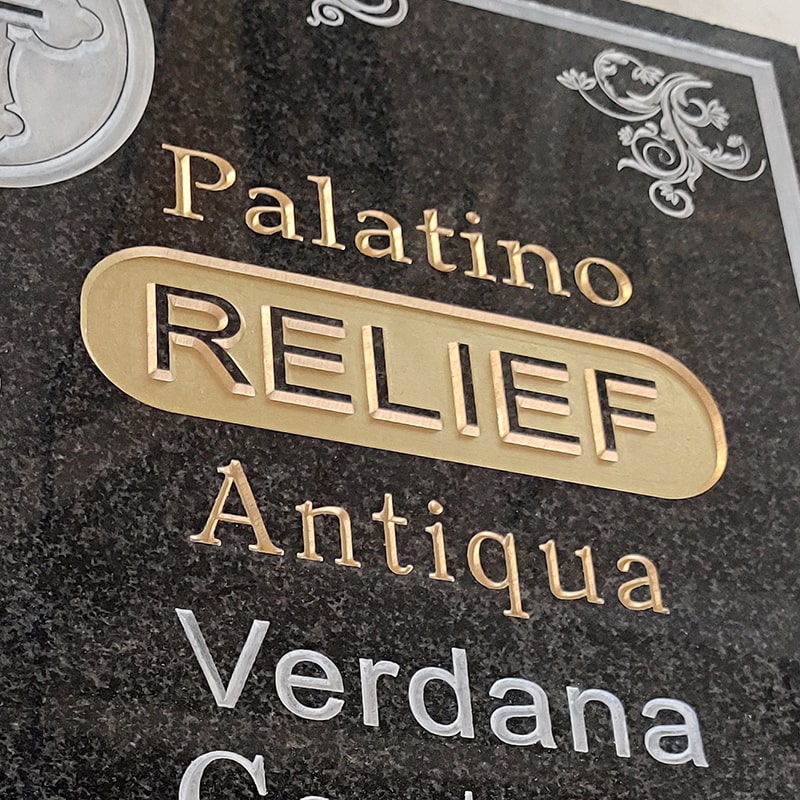

CNC Milling Machine LETMIL MT6060 can mills the most popular headstone lettering styles: V-sunk and U-sunk letters.

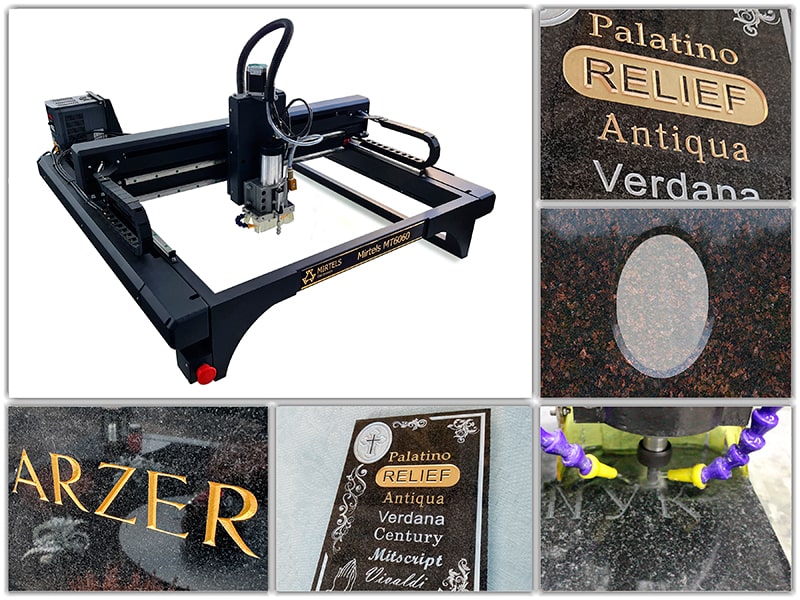

Application area:
- Inscriptions on tombstones
- Creation of ornaments and patterns on stone
- Making a recess in stone slabs for installing photo ceramics
- Production of bas-reliefs having a small depth (up to 80mm).

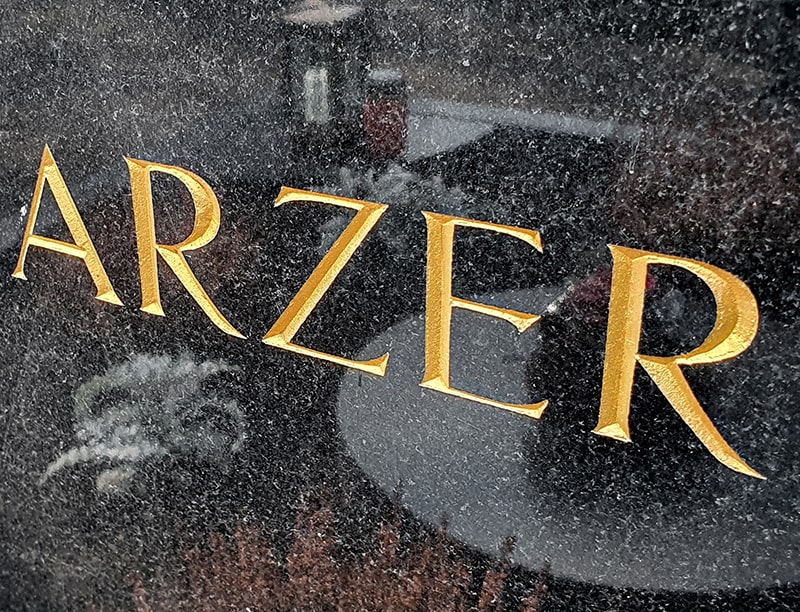

After creating the text on the stone, you can apply paint of any color (for example, gold, white or silver) to the surface of the text in order to have a more noble form.
What is the maximum thickness of the slab for applying the text? - This question is often asked by customers. You can apply the text on the slabs of any thickness. The machine can be installed on any plate on top and apply the text.
Milling Machine Mirtels MT6060 can be used in advertising business, furniture business, souvenir business, as well as for a home hobby. In addition to the stone on this machine, you can treat plastic and wood.

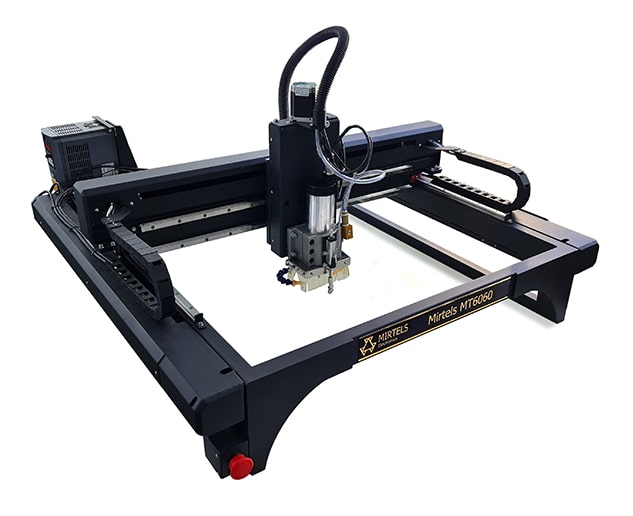

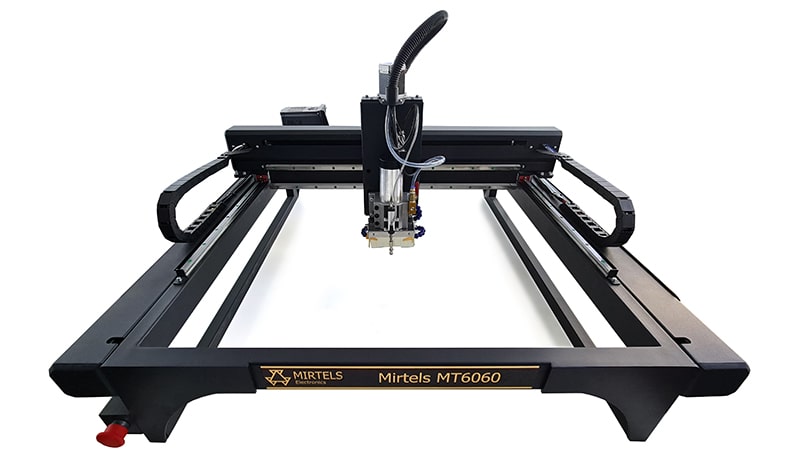

LETMIL MT6060 Milling Machine: Design and characteristics
The design of the machine has many advantages compared to other machines, namely:
- The MT6060 machine has a steel vibration-resistant frame.
- The machine frame has a flat base and the machine can be installed directly on the surface of the stone.
- Air cooling spindle is installed on the machine. The tool during operation is cooled with water.
- The most important advantage of the machine is the scanner. Using the sensor, the machine scans the surface of the stone and then with high accuracy the text is applied to the real surface of the product. Without such a scanner, ordinary milling cutters give a greater error when milling the text and often gets a marriage. MT6060 machine mills a high quality text.
Why can the MT6060 machine apply any text and any font for granite and marble with high quality? There are important characteristics that affect the work of the machine:
- The best technical solutions are used in the design of the machine: linear guides and ball-screw gears are installed on the axes of X, Y.
- The height of the tool movement is 95 mm. Thanks to this, it is possible to produce a variety of low-depth bas-reliefs.
- The machine has its own MTGCAM software. This software is compatible with Windows, has a convenient interface.
- The machine can be connected to a computer using several ways: USB cable or Wi-Fi.
- With an emergency power outage, the machine will continue its work from the point at which it stopped.
Specifications LETMIL MT6060
| Processing area X,Y,Z мм | 600×600×80 |
|---|---|
| Machining accuracy, mm | ±0,01 |
| Machine frame | Steel |
| Design | Plane table |
| Guides along the axis X, Y, Z | Square guides |
| Drive axis X, Y | Ball screw |
| Drive axis Z | Ball screw |
| Spindle | 0,8 kW |
| Spindle speed, rpm | 10000-30000 |
| Spindle and tool cooling | Air |
| Canga | Tip diameter 6 mm |
| Connection interface | USB |
| Control system | MTGCAM |
| Supply voltage | Single phase, 220 V, 50 Hz |
| Power, kW | 0,9 |
| Net/gross weight, kg | 70/110 |
| Warranty | 1 year |
LETMIL MT6060 Milling Machine: how to apply text to stone
How to start working on a milling machine MT6060 and how to apply a deep text to granite and marble? In order to start working on the machine, you need to familiarize yourself with the operating instructions. The user can apply any text to the stone and select any font.
In order to apply the text to the stone, you need to perform the following:
- Write a text on a computer in software and select a font
- Select milling modes: speed and depth
- Make a stone scan on the machine using a sensor
- Select the onset point and move the tool to this point
- Run the process: press the start button
Working with a milling machine for applying the text is very simple. The capabilities of the machine are very large. The milling of the text has high speed. The machine Mirtels MT6060 applies the text to the stone faster and much better compared to the sandblasting apparatus.
Milling Machine Mirtels MT6060: Price and how to buy
In order to get the current price for the MT6060 milling machine, contact our contact manager on our website. Our employees will tell you the price, and can also report the cost of delivery to your city.
The machine includes instructions for operating, as well as video. Thanks to this information, you can quickly learn how to apply text and other images to the stone.
If you have additional questions, then you can ask them our technical support.
