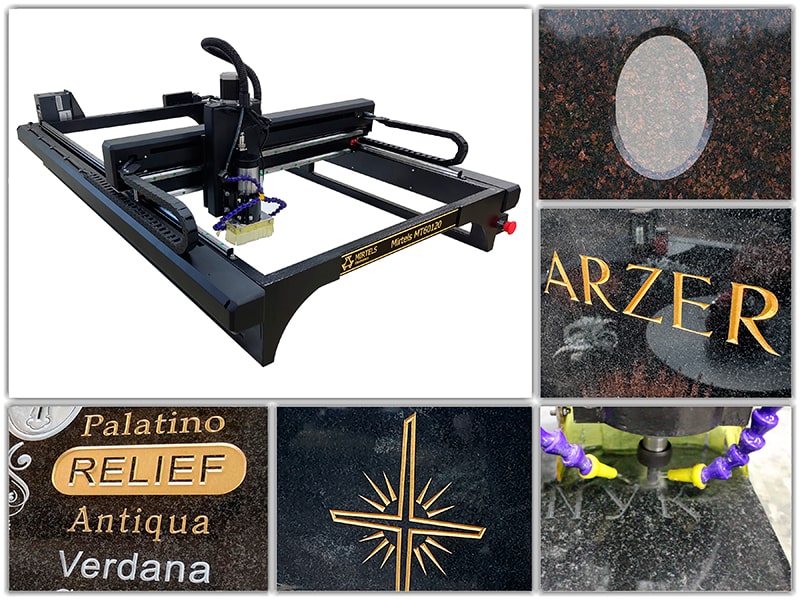

CNC Stone Milling Machine Mirtels MT60120 is a special equipment for milling various types of stone. This equipment appeared thanks to the engineers of the Mirtels company, as well as thanks to the idea that was suggested by the owners of the stone workshops. They needed a machine that could quickly and efficiently produce deep text on granite and marble. And Mirtels engineers have created such unique equipment. An important distinguishing characteristic of this machine is the scanner. It is thanks to the preliminary scanning that the cutter applies high-quality and beautiful texts with high accuracy even on the uneven surface of the stone slab, since the scanner very accurately determines the location of the surface of the product.
LETMIL MT60120: Application
This equipment prints deep text on granite and marble stone slabs. In this case, you can set any text depth from tenths of a millimeter to several centimeters (0.1 mm - 2 cm). The consumable material with which the text is applied is a cutter. You can use different types of cutters: polycrystalline, carbide, sintered and others.
With the Mirtels MT60120 stone milling machine, you can perform the following tasks:

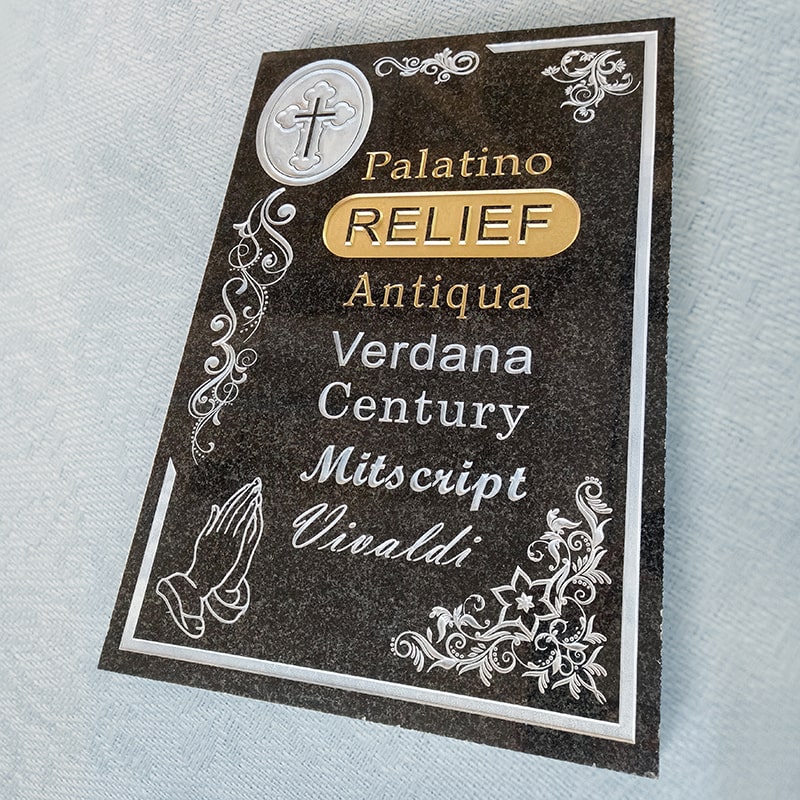

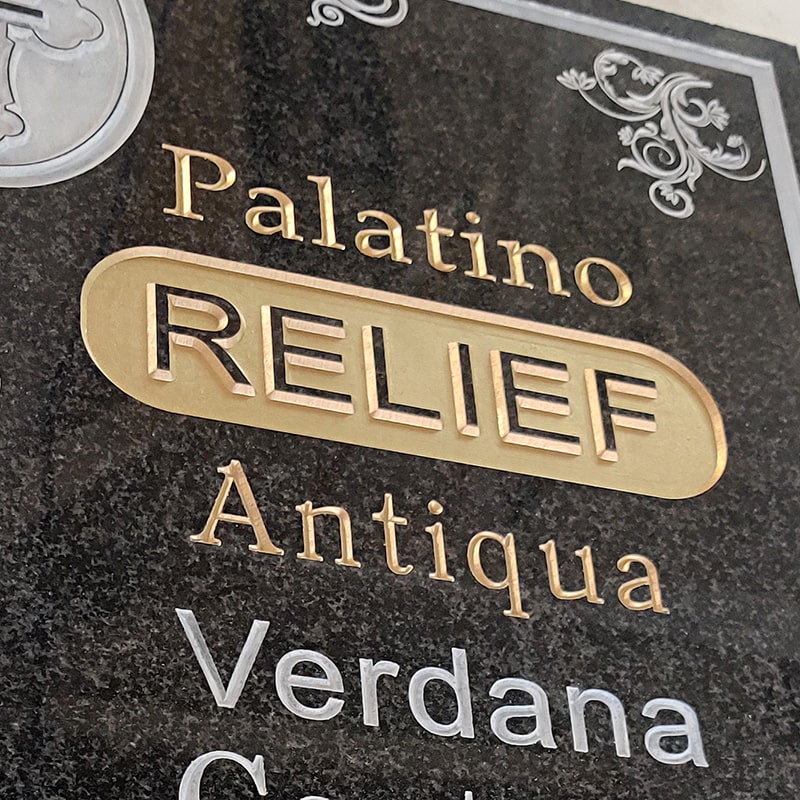

- Mill text on a stone slab using any font.

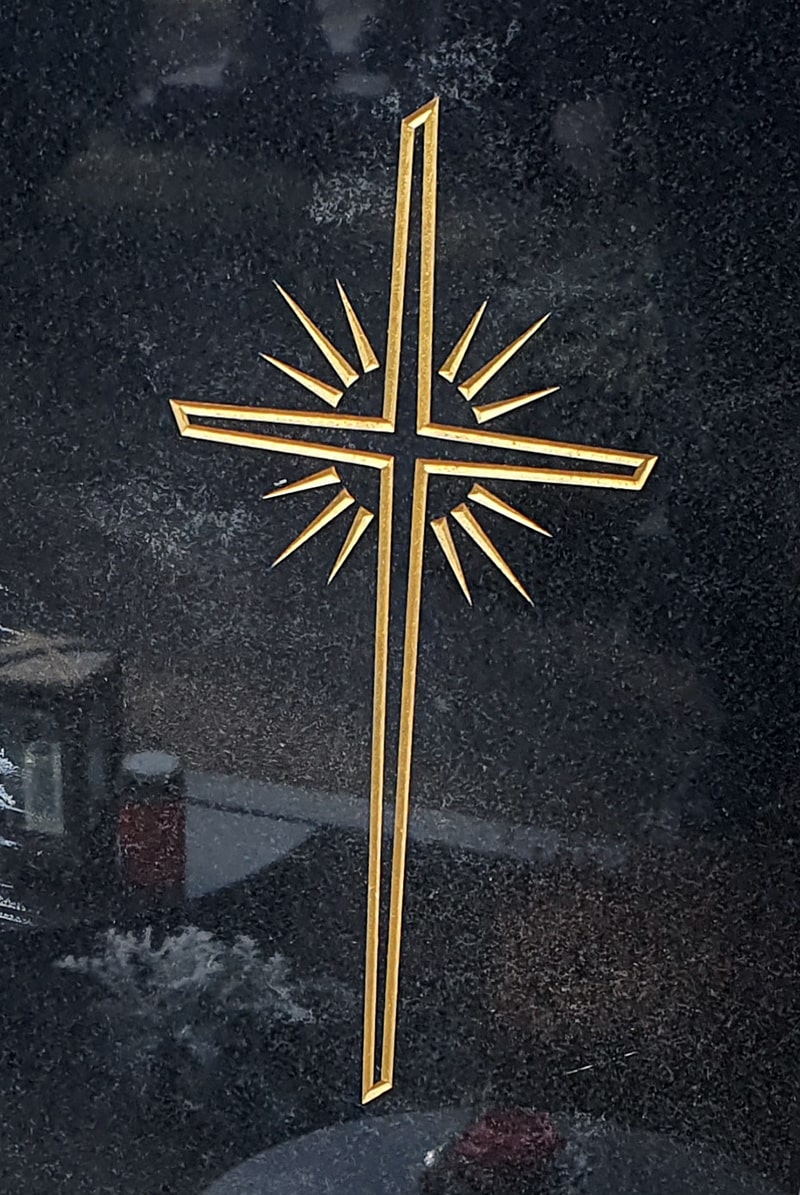

- Mill ornaments, vignettes, frames.

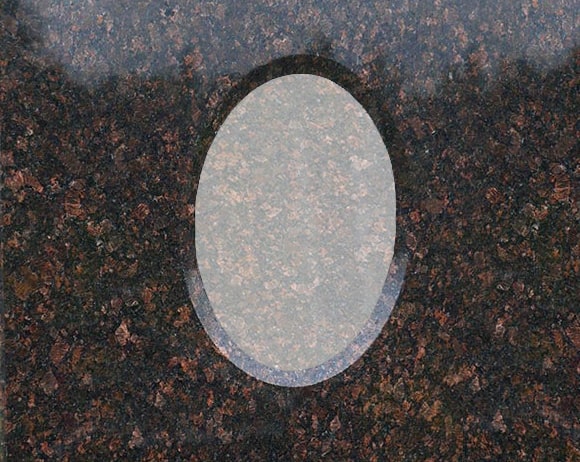

- To make a niche inside the slab to place photoceramics in it.
- Make shallow bas-reliefs.
The CNC Mirtels Milling Machine can be used not only for stone processing, but also in the advertising business (plastic processing), furniture production (wood processing), souvenirs and a number of other types of production. Thus, this equipment is universal.
The thickness of the slab on which you apply the text can be any, since the machine can be installed directly on the surface of the stone. Also, the size of the stone can be either smaller or larger than the size of the machine.
After you have made the deep text on the stone slab, you can paint the text (gold, silver, bronze, white, etc.) to add nobility and elegance.
Stone Milling Machine LETMIL MT60120: features and advantages
First of all, it is necessary to list the design features of the machine, which are the advantages of this equipment compared to competitors' equipment:

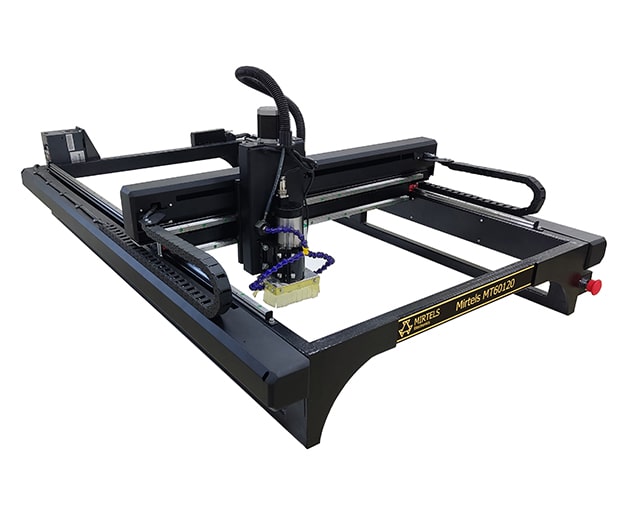

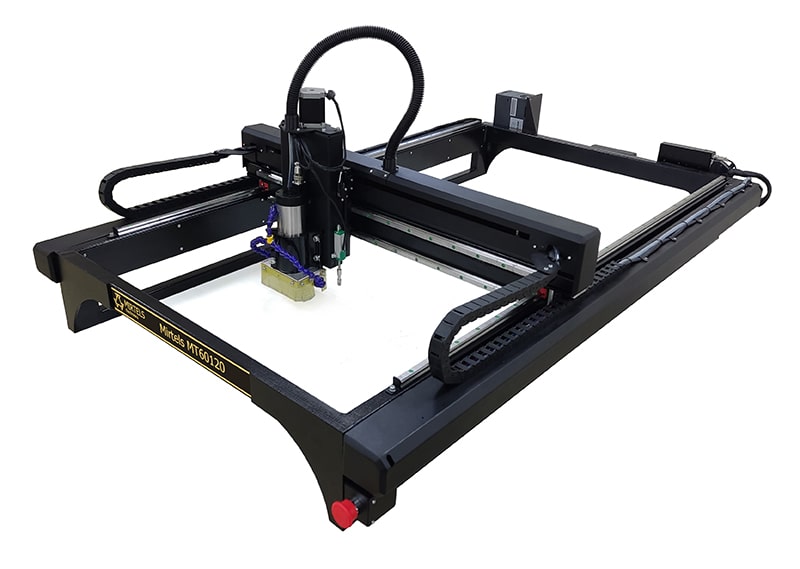

- The machine has a flatbed design. This is very user friendly. The machine is installed on a stand or on the surface of the slab and is attached to it with clamps to prevent shifting, or the slab is installed from below under the machine on the table.
- The base of the machine is made of steel. Thanks to a steel frame the machine has considerable rigidity.
- A high-speed air-cooled spindle is used for stone processing. In this case, water is used to cool the tool.
- Protected against splashing water around the cutter.
- The machine has a scanner. Using a special contact sensor, a preliminary scan of the surface of the plate is performed. The scanner transmits information about the geometry of the slab to a computer. And the text is placed exactly on the real surface, so the machine will process the product, taking into account the errors in the geometric dimensions of the surface.
Other important characteristics of the machine, thanks to which high-quality stone processing is performed:
- The machine uses linear guides and ball screws in all axes of tool movement.
- Maximum movement of the tool along the Z axis to a depth of 80 mm.
- Use of original MTGCAM software that is compatible with Windows and intuitive for staff. Supplied with the machine.
- You can connect the machine to a computer via a USB cable, as well as via Wi-Fi.
- If the power is turned off, the machine can continue to work from where it left off.
Specifications LETMIL MT60120
| Processing area X,Y,Z мм | 600×1200×80 |
|---|---|
| Machining accuracy, mm | ±0,01 |
| Machine frame | Steel |
| Design | Plane table |
| Guides along the axis X, Y, Z | Square guides |
| Drive axis X, Y | Ball screw |
| Drive axis Z | Ball screw |
| Spindle | 0,8 kW |
| Spindle speed, rpm | 10000-30000 |
| Spindle and tool cooling | Air |
| Canga | Tip diameter 6 mm |
| Connection interface | USB |
| Control system | MTGCAM |
| Supply voltage | Single phase, 220 V, 50 Hz |
| Power, kW | 0,9 |
| Net/gross weight, kg | 90/130 |
| Warranty | 1 year |
Milling Machine LETMIL MT60120: ease of milling
Stone cutting is performed automatically. Any person who has read the operating instructions for the machine can operate the machine.
The user of the LETMIL MT60120 machine must perform the following tasks:
- Write text for milling in a computer program.
- Set processing parameters (speed, depth).
- Pre-scan the surface using the machine scanner.
- Move the tool to the starting point for milling.
- Start the milling process with the Start button.
Above are the main tasks of the user of the machine, they are simple and can be handled by every person who has read the instructions for using the machine.
Price Stone Milling Machine LETMIL MT60120
Managers of the company are always ready to provide the price of the Milling Machine LETMIL MT60120. In addition to the price of the machine, they will be able to calculate the cost of delivery to your city.
TThe equipment contains training information (instruction, video). Therefore, you can easily get started after studying the information that comes with the machine.
Also, our specialists will be able to answer additional questions that you may have during the operation of the equipment.
Addresses, phone numbers, E-mail, WhatsApp, a list of our company's offices are listed in the Contacts section.
